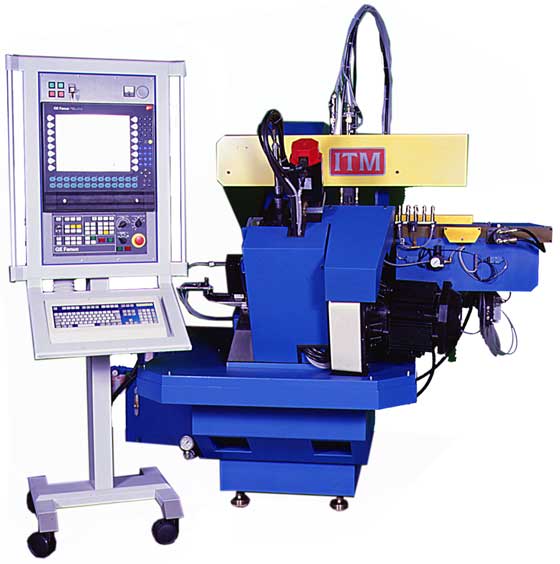

• 4 CNC Axes
• Up to 15 HP Spindle Drive
MACHINE DIMENSIONS
• Height: 2440 mm, 96"
• Width: 1830 mm, 72"
• Depth: 2440 mm, 96"
• Weight: 2,900 kg, 6,500 lbs |
OPTIONS
• Automatic Central
Lubrication System
• Auto-Loader
• Second Grinding
Wheel for Additional Operations
• Spindle Fixture up to 12"½ Angle
• 2 Axis CNC Diamond Roll Dresser for
in-process dressing
• Customer Specific Software Packages Available |
|
APPLICATIONS / GRINDING OPERATIONS
• End Mills: End Teeth; European and American Configurations,
Centercut, Non-Centercut, Notching, Corner Chamfer
• Drills: Drill Point, Conical Point, Multi-Faced
• Automatic Programmable Tip Cutoff
• Reamers: Gashing & Endteeth
WORKPIECE DATA
• Max. Dia. 25mm, 1"
• Min. Dia. 3mm, 1/8"
• Max. Length 180mm, 7"
• Min. Length 50mm, 2"
TECHNICAL DATA
• Inch/Metric switchable
• Automatic high
precision dressing
• Spindle fixed to 6� angle
• Automatic locating
of prefluted parts
with Probe
•
Built In PC with the latest
Pentium® Technology - for the generation and storage of NC programs and for graphic simulation of the grinding operation.
GRINDING WHEELS
• Max. Dia. 205mm, 8"
• Min. Dia. 180mm, 7"
• Max Width 20mm, 3/4"
|
Optional Automatic Cassette Loading System
using standard size cassettes -
• Min. Dia. 3mm, 1/8"
• Max. Dia. 25mm, 1" (32mm, 11/4")
• Min. Length 35mm, 1 3/8"
• Max. Length 160mm, 6 1/4"
• Capacity:
up to 12mm, 1/2" Dia. - 330 pcs.
over 12mm, 1/2" Dia. - 102 pcs. |
 |
|
