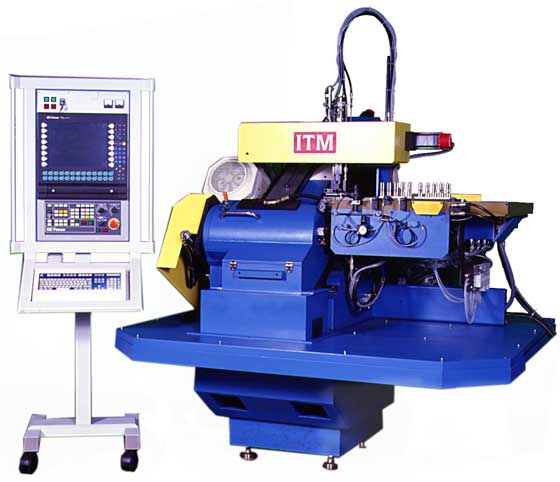

Flute and Clearance Grinder
• 4 CNC Axes
• Up to 25 HP Spindle Drive
MACHINE DIMENSIONS
• Height: 2440 mm, 96"
• Width: 1830 mm, 72"
• Depth: 2440 mm, 96"
• Weight: 2,900 kg, 6,500 lbs |
OPTIONS
• Variable Speed Control for Spindle Drives
• Auto-Loader
• Automatic Central
Lubrication System
• 2 Axis CNC Diamond Roll Dresser for in-process dressing
• Customer Specific Software Packages Available
• Built In PC with the latest
Pentium� Technology -
for the generation and storage of NC programs and for graphic simulation of the grinding operation.
|
|
APPLICATIONS / GRINDING OPERATIONS
• End Mills: Flute, Primary and Secondary with angular or eccentric relief
• Drills: Flute and Clearance
• Subland Drills: Multiple Flutes, Clearance and Step
• Special Flute Grinding
• Reamers: Flute & Relief
WORKPIECE DATA
• Max. Dia. 25mm, 1"
• Min. Dia. 3mm,1/8"
• Max. Length (clamping)
200mm, 8"
• Max. Length (grinding)
180mm, 7"
TECHNICAL DATA
• Inch/Metric switchable
• Flute Angle Adjustment
25� to 45�
• Automatic high
precision dressing
• Up to 2 grinding spindles
GRINDING WHEELS
• Fluting Spindle:
Max. Dia. 265mm, 10 1/2"
Min. Dia. 245mm, 9 1/2"
• Clearance Spindle:
Max. Dia. 305mm, 12"
Min. Dia. 295mm, 11 1/2"
• Up to 80 m/s
wheel speeds
• Diamond, CBN or
conventional wheels
|
Optional Automatic Cassette Loading System
using standard size cassettes -
• Min. Dia. 3mm, 1/8"
• Max. Dia. 25mm, 1" (32mm, 11/4")
• Min. Length 35mm, 1 3/8"
• Max. Length 160mm, 6 1/4"
• Capacity:
up to 12mm, 1/2" Dia. - 330 pcs.
over 12mm, 1/2" Dia. - 102 pcs. |
 |
|
