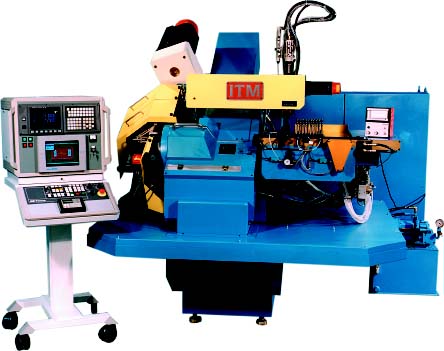

3 to 5 CNC Axes
• Up to 20 HP Spindle Drive
MACHINE
DIMENSIONS
• Height: 2440 mm, 96"
• Width: 2140 mm, 84"
• Depth: 2440 mm, 96"
• Weight: 2,900 kg , 6,500 lbs |
OPTIONS
• Automatic Central Lubrication System
• Second Grinding Wheel for Additional Operations
• Up to 20° Extended Pitch Angle Adjustment (RH only)
• In-Process gauge for automatic measuring in the machine
• Auto-Loader
• Built In PC with the latest Pentium® Technology - for the generation
and storage of NC programs and for graphic simulation of the grinding operation. |
|
APPLICATIONS / GRINDING OPERATIONS
• Taps: Thread and Chamfer in the same clamping
• Thread Gages
• Bone Screws
• General Thread Grinding with or without relief
• Multi-rib or Single-rib Grinding
WORKPIECE DATA
• Max. Dia. 50mm, 2"
• Min. Dia. 3mm, 1/8"
• Max. Length (clamping)
250mm, 10"
• Max. Length (grinding)
230mm, 9"
TECHNICAL DATA
• Inch/Metric switchable
• Pitch Angle
Adjustment ± 7°
• Automatic high
precision dressing
GRINDING WHEELS
• Max. Dia. 350mm, 14"
• Min. Dia. 280 mm, 11"
• Diamond, CBN or conventional wheels
• Up to 80 m/s wheel speeds
|
Optional
Automatic Cassette Loading System
using standard size cassettes -
• Min. Dia. 3mm, 1/8"
• Max. Dia. 25mm, 1" (32mm, 11/4")
• Min. Length 35mm, 1 3/8"
• Max. Length 160mm, 6 1/4"
• Capacity:
up to 12mm, 1/2" Dia. - 330 pcs.
over 12mm, 1/2" Dia. - 102 pcs. |
 |
|
