• 3 to 9 CNC Axes
• Up to 30 HP Spindle Drive

MACHINE DIMENSIONS madeusa.gif (4937 bytes)
• Height: 1750 mm, 69"
• Width: 2500 mm, 98"
• Depth: 2000 mm, 80"
• Weight:  6,363 kg, 14,000 lbs

APPLICATIONS / GRINDING OPERATIONS
Tap Flute Grinding: Straight and Gun Nose, Spiral Flutes, Chamfer
• Dies: Chamfer, Gun Nose, Internal Thread
Semi or Fully Automatic Grinding of other special tools or parts

WORKPIECE DATA
• Max. Dia. 50mm, 2" (100mm, 4")
• Min. Dia. 0.2mm, .008"
• Max. Length (clamping) 300mm, 12"
• Max. Length (grinding) 250mm, 10"

TECHNICAL DATA
• Inch/Metric switchable
• Table Swing +48�, -45�
• Up to 2 grinding spindles
• Automatic CNC dressing of all wheels

GRINDING WHEELS
• Max. Dia. 200mm, 8"
• Min. Dia. 150 mm, 6" (3mm for Die Grinder)
• Up to 80 m/s wheel speeds
• Diamond, CBN  or conventional wheels

 OPTIONAL Built In PC with the latest
Pentium� Technology - For the generation and storage of NC programs and for graphic simulation of the grinding operation.

Automatic Cassette Loading System
for fully automatic operation (2002-UFGG)
• Min. Dia. 3mm, 1/8"
• Maximum Diameter 25mm, 1" [32mm, 11/4"]
• Min. Length 35mm, 13/8"
• Max. Length 160mm, 6 1/4"
• Capacity: up to 12mm, 1/2" Dia. - 430 pcs.
over 12mm, 1/2" Dia. - 160 pcs.

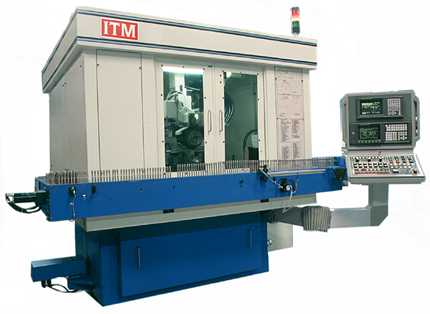

Automatic loading of taps: 2002-UFGG

ITM Machines are Designed for 24 Hour Production...7 Days a Week
